Hydraulic Contamination After Repairs: A Clean-Handoff Checklist
A hydraulic repair can introduce contamination at several separate handoff points: when a line is opened, a hose is handled, a component is installed, or fluid is transferred back into the machine. The useful question is not only “Was the repair completed?” but also “How was each open path protected before the system was closed again?”
This checklist focuses on contamination control during and immediately after repair work. It is a planning aid, not a substitute for the machine’s operation and maintenance manual or a model-specific repair procedure.
Where a repair can reopen the contamination path
Opening a hydraulic circuit exposes connection surfaces to dust, moisture, fibers and debris. Hose work can add particles from cutting or handling; a removed or exposed connection can also collect dirt from the surrounding area. Donaldson describes repair and maintenance as possible contamination sources and specifically calls out quick couplers, filler points and hose connections. Caterpillar likewise advises capping disconnected hose ends and following the machine-specific manual and safety procedure.
These sources support a process check, not a universal repair recipe. The correct cleaning method, fluid specification, filtration arrangement and acceptance limits depend on the equipment and the work performed.
Use hold points through the repair
| Work stage | Contamination path to control | Hold point | Useful record |
|---|---|---|---|
| Before opening a line | Dirt around fittings can move inward when the connection is disturbed. | Prepare the work area and follow the equipment maker’s shutdown, pressure-release and cleaning instructions. | Machine identity, work area and component/line being opened. |

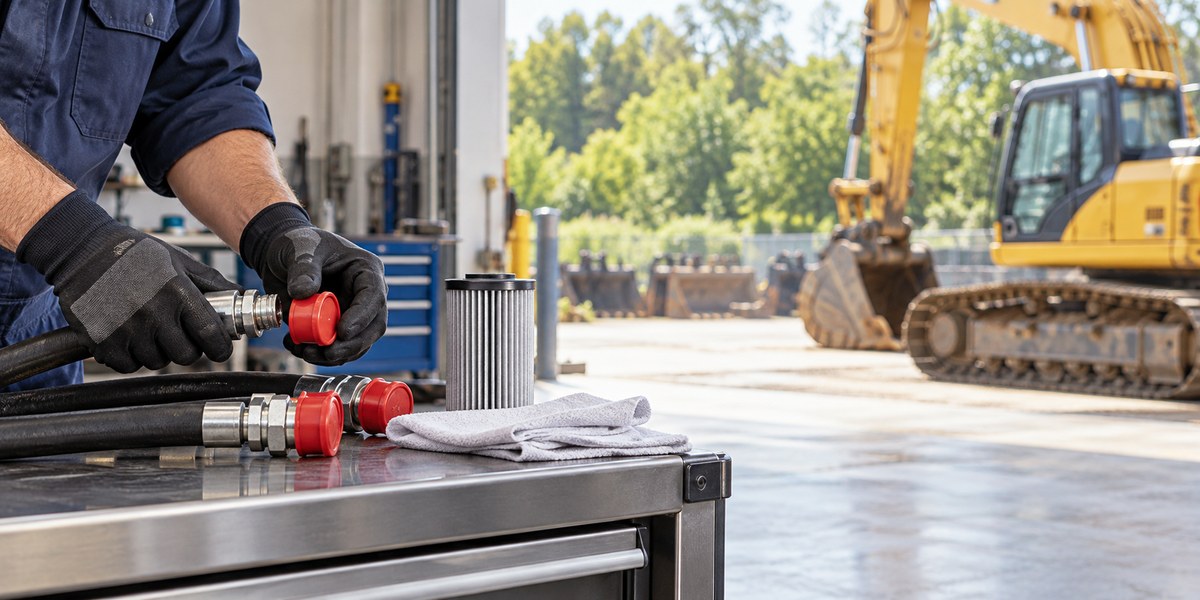

| While a line is disconnected | Open hose ends and ports can collect airborne or contact debris. | Protect both exposed sides with clean, suitable caps or plugs; keep them protected while work continues. | Which connections were opened and how they were protected. |
| During hose or component handling | Cutting residue, shop debris, fibers or unprotected replacement parts can enter the circuit. | Keep clean ends off the floor and covered. Use only the hose/component cleaning method specified for the job; do not improvise with a generic air-blow or solvent method. | Replacement component identity and the approved preparation method used. |
| At reconnection | Dust on couplers, fitting faces or sealing areas can be carried into the system. | Inspect and clean connection surfaces as directed; remove protection only when ready to connect. | Connection points checked and any unresolved concern. |
| When fluid is returned | Transfer containers, fill points and couplers can introduce contamination even when the oil appears clear. | Use the specified fluid and the equipment maker’s filling/filtration procedure with clean, closed handling equipment. | Fluid source and any prescribed transfer or filtration step. |
| Before return to service | A completed repair does not itself confirm fluid cleanliness or correct operation. | Complete the model-specific inspection, leak check, sampling or analysis required by the manual or repair plan. | Checks completed, result/reference and any follow-up owner. |
For a machine-specific example, Caterpillar’s hose-maintenance guidance calls out capping disconnected hose ends and following its Operation and Maintenance Manual. Apply the equivalent instructions for the actual machine being serviced; Cat guidance is not a procedure for other makes.
Make the handoff record actionable
A short repair note can help the next technician distinguish a protected, documented job from one that needs follow-up. Record the circuit or component opened, the replacement part or hose identity, the protection and preparation steps used, the fluid source, and the post-repair check required by the machine documentation. If something was exposed, dropped, left uncapped or handled in an uncertain way, record that exception and the disposition rather than relying on memory.
- Documented: the work followed the applicable procedure and the required checks are recorded.
- Hold for review: a cleanliness step or acceptance check is incomplete, or the repair record does not identify what was done.
- Escalate: contamination is suspected, a component failed internally, or the manual calls for sampling, flushing or specialist assessment.
Do not treat the “hold” category as a diagnosis. It means the available evidence is incomplete and the next action should come from the equipment procedure or a qualified service source.
When a replacement part is part of the repair
Choose replacement filters, hoses, seals or couplers from the machine’s parts information and the exact component details. The KuduParts hydraulic-filter collection and hydraulic-coupler collection are browsing starting points only; a collection page does not establish fitment, filtration rating or suitability for a particular circuit.
References and limits
This checklist draws on Donaldson’s contamination-control guidance and its hydraulic hose cleanliness guidance, plus the Cat-specific hose maintenance article. Procedures and acceptance limits remain equipment-specific. Consult the applicable manual or qualified service provider for the actual machine.
