- SKU: JY86992688

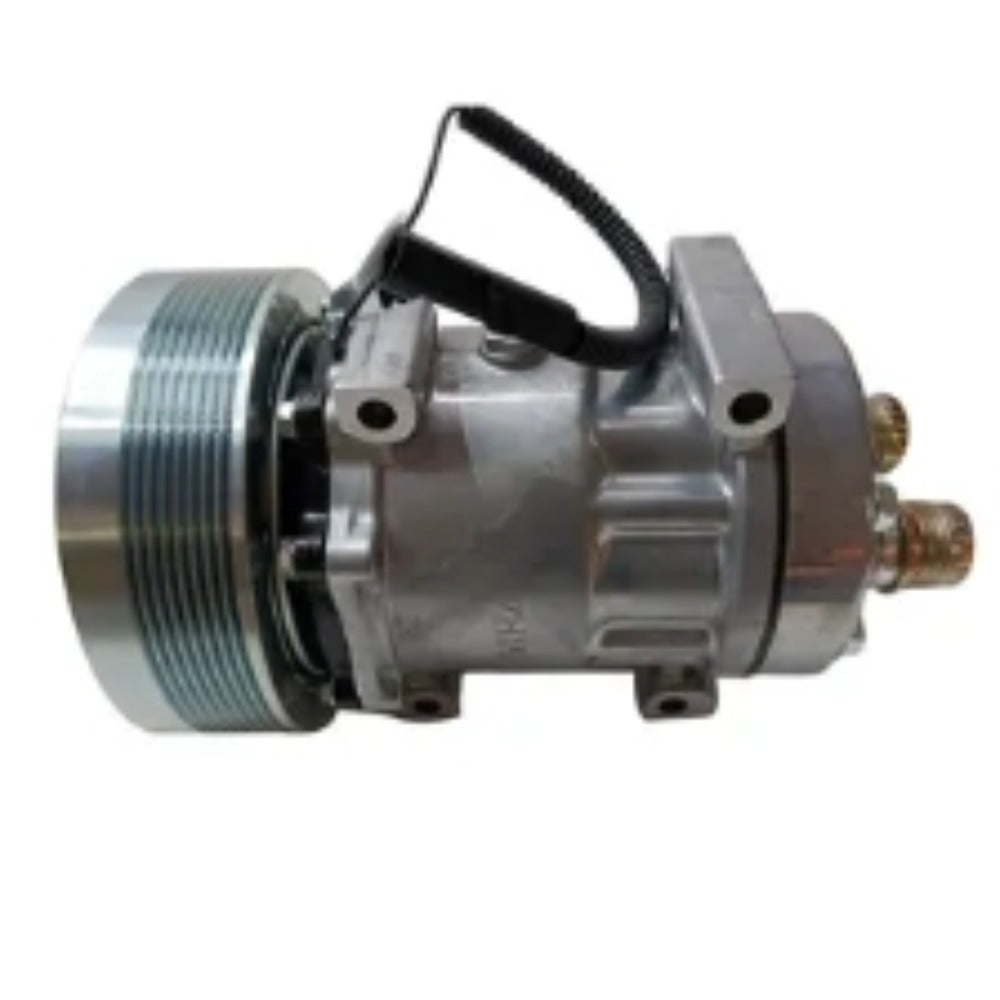

SD7H15 A/C Compressor 86992688 for New Holland Tractor TG230 T8020 TG275 T8030 T8040 TG305 TG215 T8050 TG245 T8010
High quality aftermarket parts for reliable performance.
Every purchase is backed by our commitment to product quality.
Couldn't load pickup availability
Part Name: SD7H15 A/C Compressor 86992688 for New Holland Tractor TG230 T8020 TG275 T8030 T8040 TG305 TG215 T8050 TG245 T8010
Replace Part Number: 86992688
Specification:
Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: MD
Port Angle: Horizontal
Head Port Style: 1 X 14
Clutch Diameter: 152 mm ~ 6 inch
Clutch Style: With Dust Cover
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 12
Coil Connector: 1 Wire Female Packard #12010996
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 285cc
Applications:
Fit For New Holland Tractor:
TG230, T8020, TG275, T8030, T8040, TG305, TG215, T8050, TG245, T8010
