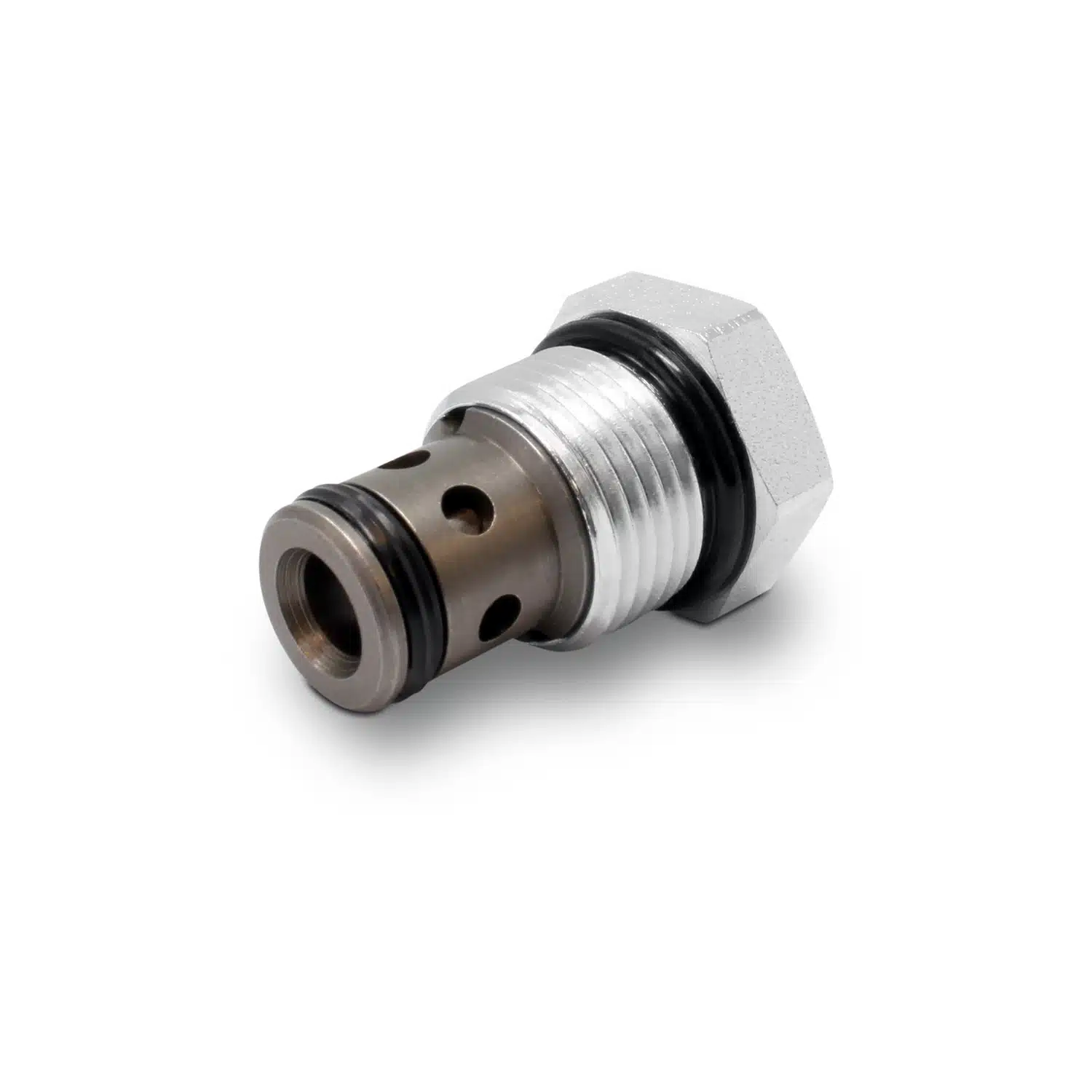

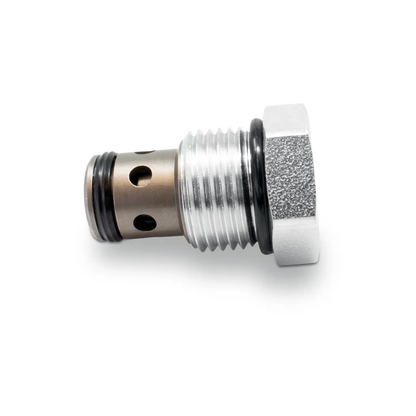

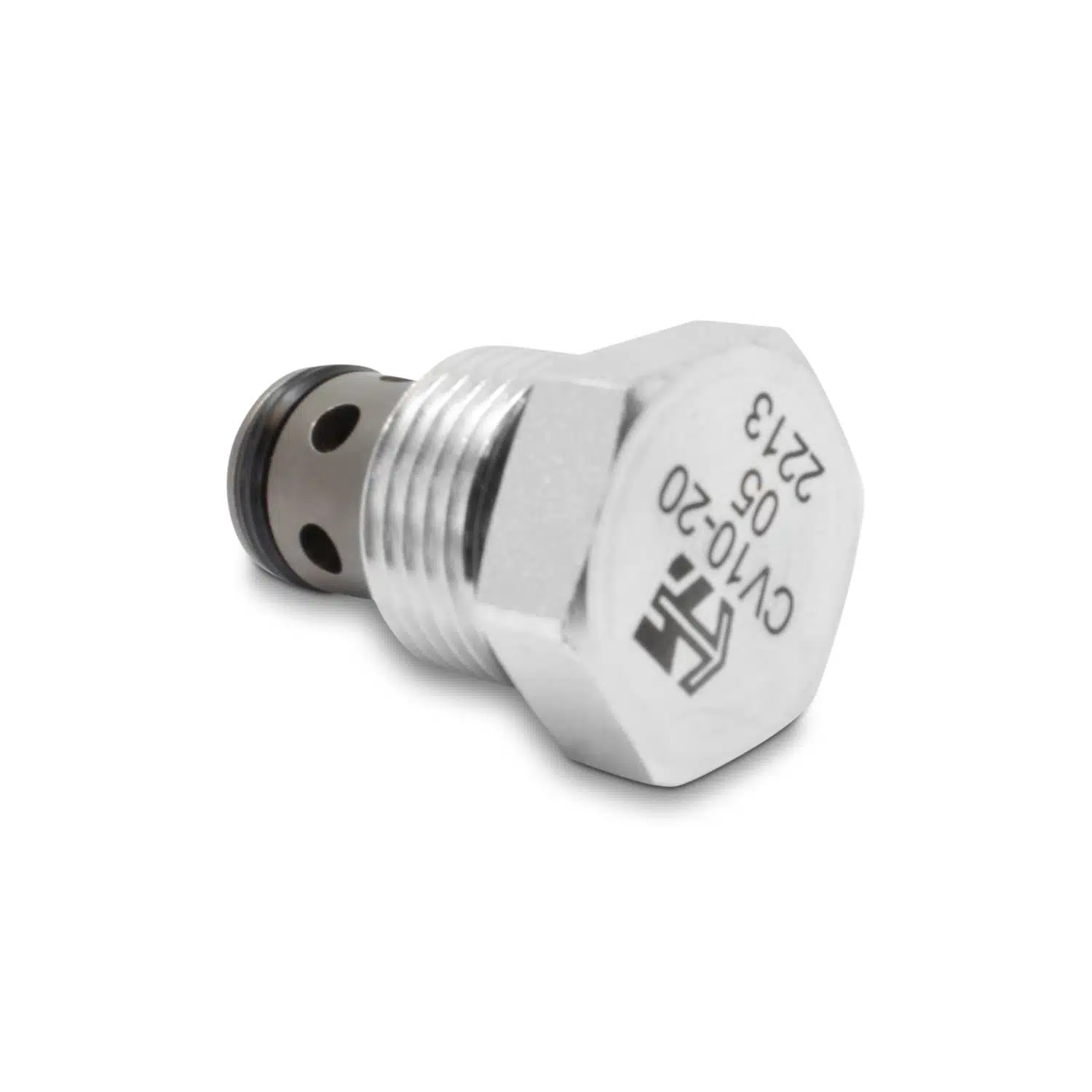

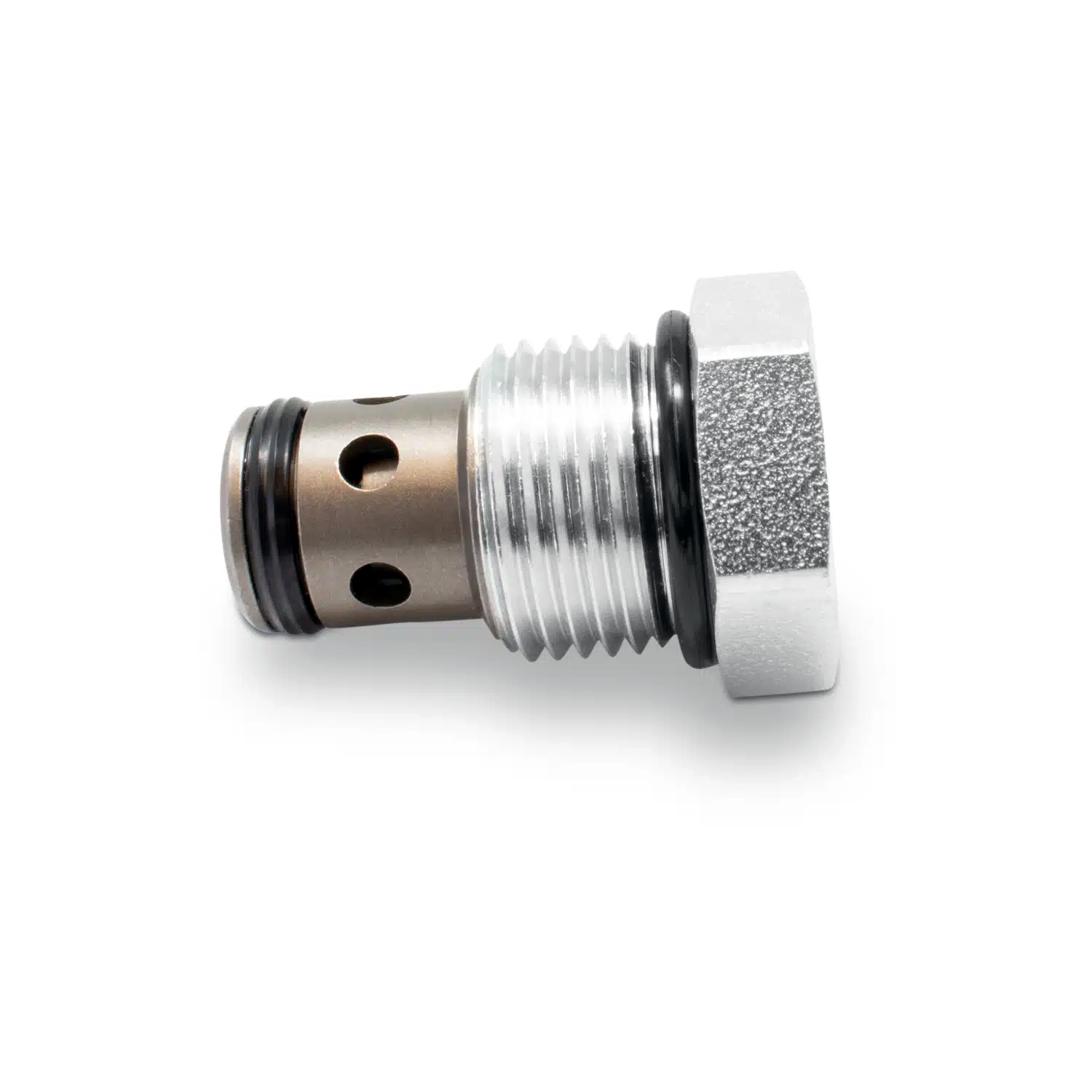

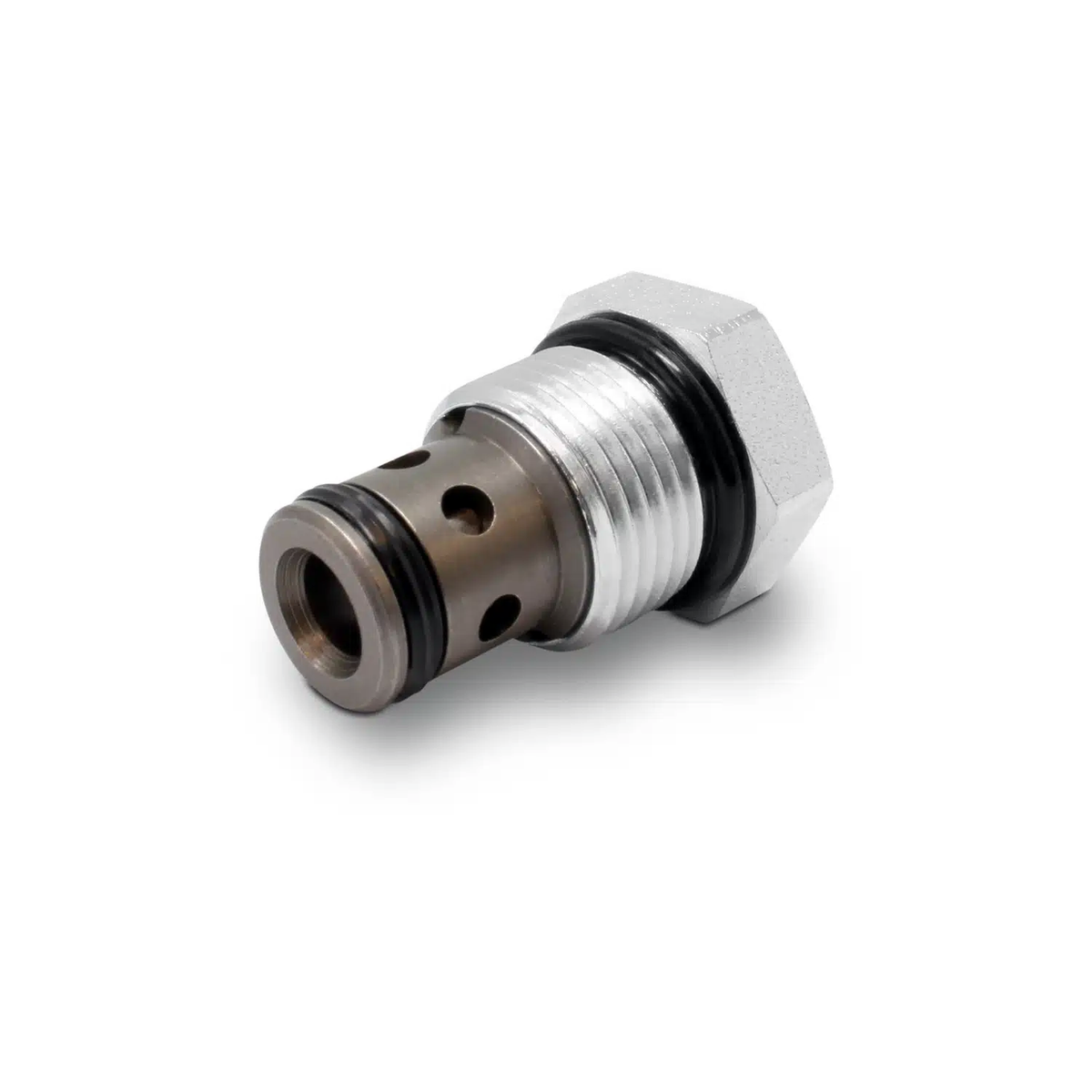

Piloted Spool-Type Logic Element Valve CV10-20-0-N-40 for Hydraforce
CV10-20-0-N-40
Couldn't load pickup availability
- Fast express shipping available by FedEx/UPS/DHL.
- 10 years experience in heavy machinery parts sales.
- 30,000+ quality parts, 90 days worry-free return service.
Question about this product?
We're happy to help.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
Part Name: Piloted Spool-Type Logic Element Valve
Part Number: CV10-20-0-N-40
Applications:
Pressure Rating:240 bar (3500 psi)
Proof Pressure:350 bar (5075 psi)
Flow Rating:75.8 lpm (20 gpm)
Maximum Internal Leakage:2 drops/min Note: At 240 bar (3500 psi)
Operating Fluid Temperature:
-40 to 100 °C (-40 to 212 °F) Note: With buna N seals
-26 to 204 °C (-15 to 400 °F) Note: With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F) Note: With polyurethane seals
-40 to 149 °C (-40 to 300 °F) Note: With HNBR seals
Storage Temperature:-40 to 70 °C (-40 to 160 °F)
Ambient Temperature:-40 to 90 °C (-40 to 194 °F)
Corrosion Protection:Gcv10-20 - 960 hour salt spray per ASTM b117
Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range:7.4 to 420 cSt
Maximum Operating Contamination Level:20/18/14 per ISO 4406
Installation Specifications:
Cavity:VC10-2,10-size-2-way Cavities
Cartridge Installation Torque:32.6 to 35.4 N-m (24 to 26 ft-lb)
Maximum Allowable Torque:67.8 N-m (50 ft-lb)
Orientation Restriction:None
Specifications
Specifications
|
Brand |
KuduParts |
|---|---|
|
Compatible with |
HYDRAFORCE |
