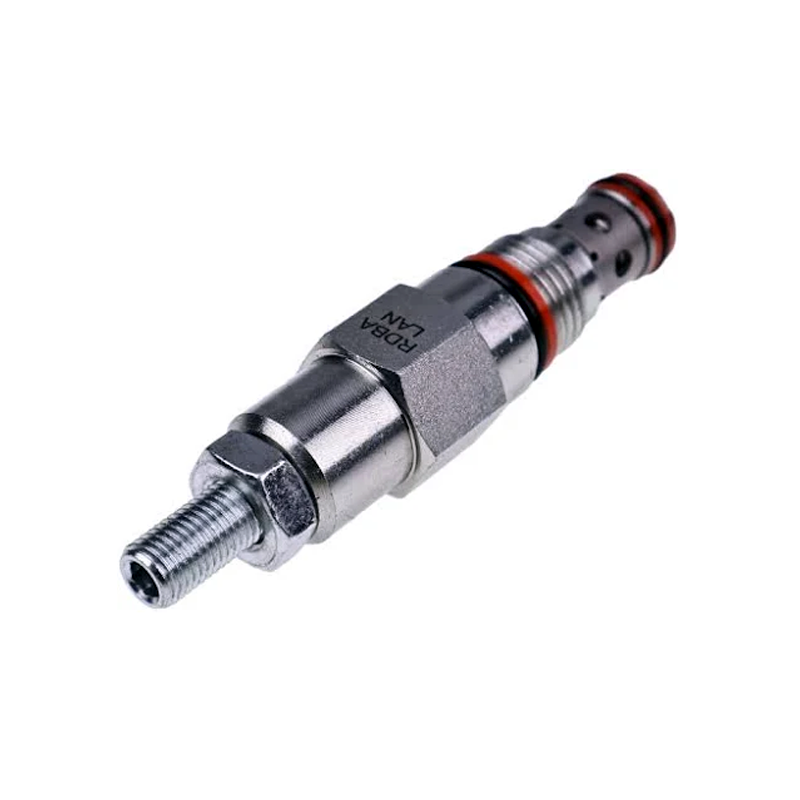

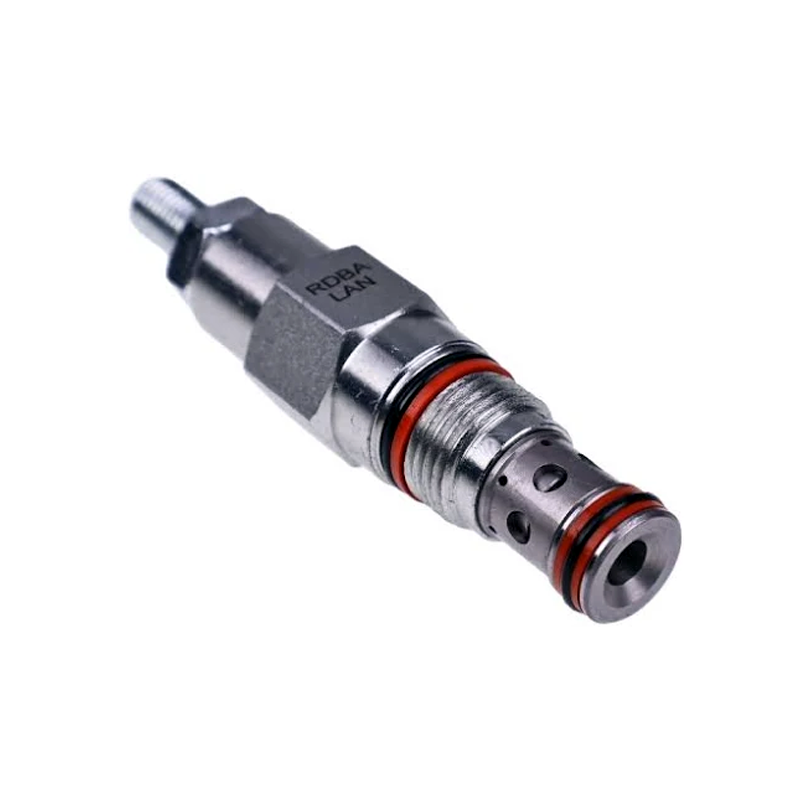

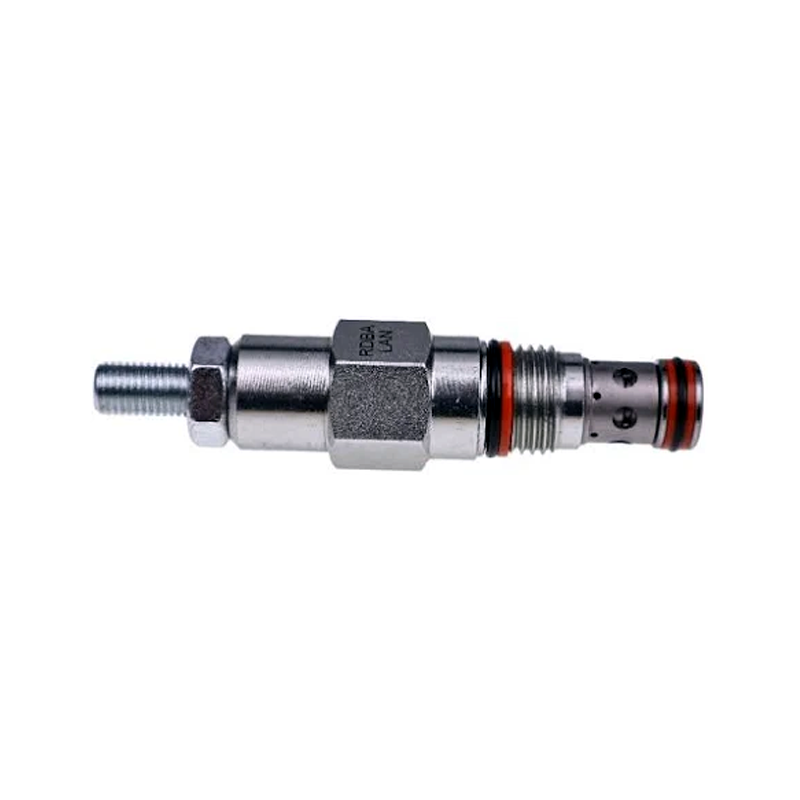

Aftermarket Sun Hydraulics RDBA-LAN Safety Relief Valve

In stock
Regular price $55.00 inc. VAT
Free express shipping on orders over $99
Safe Payment, Secure Logistics & Worry-free Returns

Offer for new buyer

Buy quality heavy machinery aftermarket parts for SUN at KuduParts, Sign up to get $50 coupons before purchasing.
 More payment options

More Information

  • Type Main & Relief Valve
  • For Brand SUN
  • SKU ZH-RDBALAN

Any questions about this product?

Contact Us

Live Chat on WhatsApp

Join our Affiliates Program to earn extra income with every share on social media.

Part Name: Aftermarket Sun Hydraulics RDBA-LAN Safety Relief Valve

Part Number: RDBA-LAN, RDBALAN

Application:
Cavity: T-162A
Capacity: 12 gpm
Maximum Operating Pressure: 5000 psi
Factory Pressure Settings Established at: 4 gpm
Maximum Valve Leakage at Reseat: 10 drops/min.
Response Time - Typical: 2 ms
Reseat: >85% of crack setting
Adjustment - No. of CW Turns from Min. to Max. setting: 6
Valve Hex Size: 3/4 in.
Valve Installation Torque: 20 - 25 lbf ft
Adjustment Screw Internal Hex Size: 5/32 in.
Locknut Hex Size: 1/2 in.
Locknut Torque: 80 - 90 lbf in.
