- SKU: JY7246795

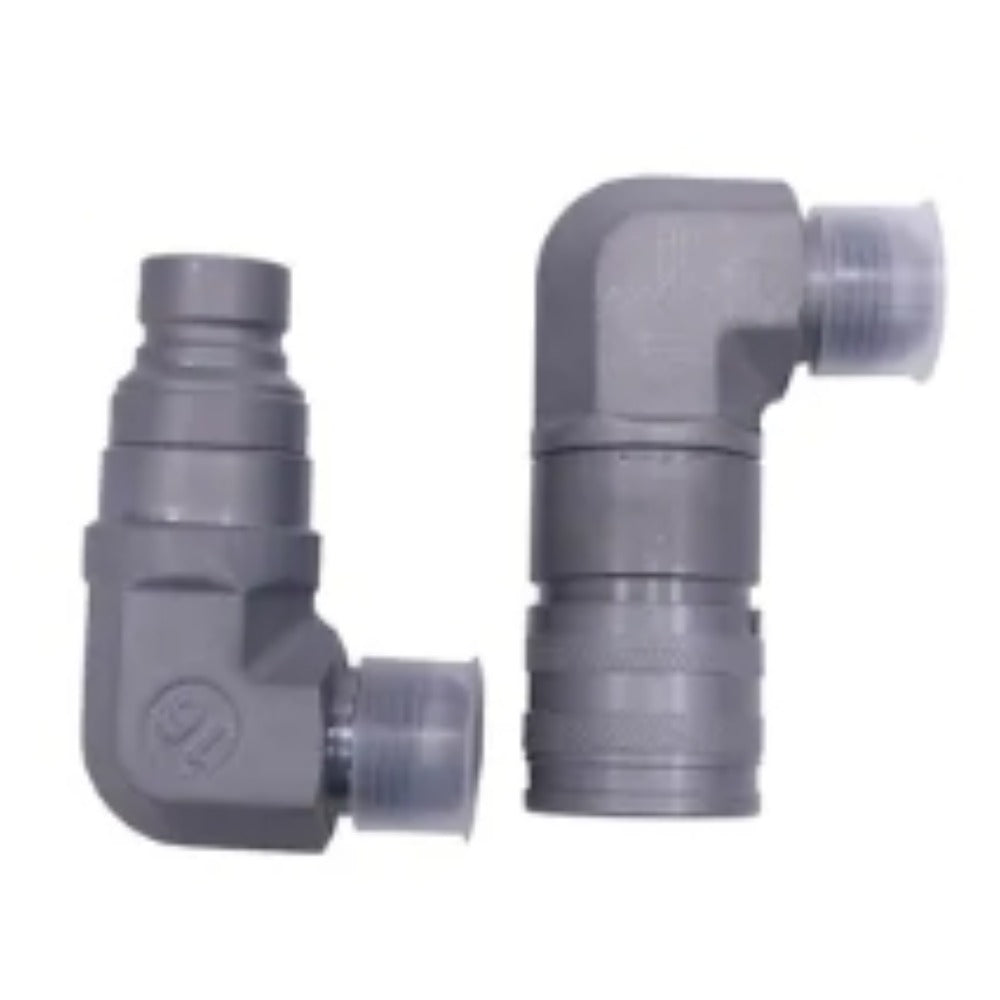

Male & Female Hydraulic Coupler Kit 7246795 7246781 for Bobcat Skid Steer Loader
Hochwertige Ersatzteile aus dem freien Ersatzteilmarkt für zuverlässige Leistung.
Unser Qualitätsanspruch gilt für jeden Einkauf.
Verfügbarkeit für Abholungen konnte nicht geladen werden
Part Name: Male & Female Hydraulic Coupler Kit 7246795 7246781 for Bobcat Skid Steer Loader
Part Number:
Male Flat Face Coupler: 7246795
Female Flat Face Coupler: 7246781
Applications:
90 Degree Flat Faced Male Coupler, 1/2" body, 1-1/16" JIC thread, 7246795
Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.
No fluid spillage or air inclusion keeping equipment safe and clean
Avoid costly fluid spills
Internal components designed to maximize fluid flow with minimal change in pressure
Push to connect
Working pressure of 35 MPa
High grade carbon steel with zinc-nickel plating
ISO 16028 interchange
Half inch body size
1-1/16 inch JIC thread
Manfacturers Part Number: FFH08-61/34S M
Fits the following Bobcat attachments:
Backhoe, Box Blade, Brush Saw, Concrete Mixer, Landscape Rake, Mower, Planer, Rotary Cutter, Snowblower, Spreader, Sweeper, Tiller, Tree Spade, Wheel Saw
90 Degree Flat Faced Female Coupler, 1/2" body, 1-1/16" JIC thread, 7246781
Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.
No fluid spillage or air inclusion keeping equipment safe and clean
Avoid costly fluid spills
Internal components designed to maximize fluid flow with minimal change in pressure
Push to connect
Working pressure of 35 MPa
High grade carbon steel with zinc-nickel plating
ISO 16028 interchange
Half inch body size
1 1/16 inch - 12 JIC thread
Manufactures stamp: 3FFH08-61/34SFS
Fits the following Bobcat equipment:
All Wheel Loader: A220, A300, A770
Attachments: Angle Broom, Backhoe, Grapple, Planer, Snow Blade, Snowblower, Trencher, V-Blade, Wheel Saw
Skid Steer Loader: 653, 751, 753, 763, 773, 853, 863, 873, 883, 963, 3650, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850
Track Loader: 864, T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870
Kit Include:
1*Male Flat Face Coupler
1*Female Flat Face Coupler
