Hydraulic Oil Heat: Sources and the Cooler’s Role
A hydraulic oil cooler rejects heat; it does not eliminate the causes of heat generation throughout the system. An overheating complaint therefore has two sides: how heat is being produced, and how the installation is removing it.
Follow the energy, not only the temperature display
Useful hydraulic work and system losses coexist. Flow through restrictions, internal leakage and mechanical losses can contribute to heating. Changes in duty cycle or operating conditions can alter the thermal load even when the cooler itself has not changed.

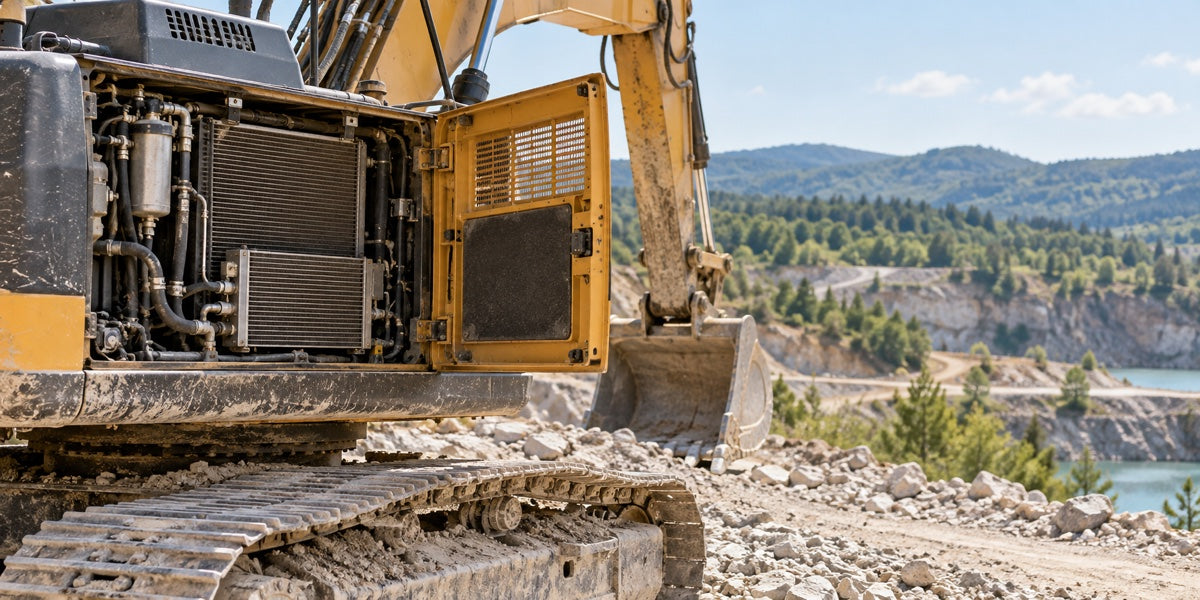

On the rejection side, airflow or coolant conditions, fin condition, fan operation and the complete cooling-pack arrangement matter. A core that appears clean from the front does not establish that the entire air path is clear. HYDAC's cooling-systems information treats combined coolers and airflow interactions as a system-design problem.
Make two separate records
| Thermal-load observations | Heat-rejection observations |
|---|---|
| Task, load pattern, operating duration and when the temperature rises. | Ambient conditions, visible cooling-pack condition and any reported fan problem. |
| Recent changes to fluid, controls, attachments or operating conditions. | Recent cooler, screen, shroud or airflow-path work. |
| Existing diagnostic findings from the prescribed service checks. | Existing inspection results and the identified cooler/circuit. |
These observations support the technician's investigation. They do not replace the machine-specific pressure, flow or temperature tests, and they do not supply a universal temperature threshold.
Use the result to define the repair
If diagnosis identifies another system fault, installing a larger cooler may leave that fault unresolved. If the cooler is damaged or unsuitable, its replacement must still match the circuit and documented requirements. Keep the inspection result with the purchase request so the offer addresses the confirmed job.
The hydraulic oil-cooler selection guide addresses the unit specification. The cooling-pack airflow guide addresses the air path. This article explains why neither of those subjects alone proves the cause of a hydraulic heating complaint.
