Hydraulic Oil Cooler vs. Engine Coolant Radiator
An engine coolant radiator and a hydraulic oil cooler remove heat from different circuits. Similar finned cores do not make the assemblies interchangeable, so identify the fluid and function before comparing replacements.
Check which circuit the part serves
The 140-3634 example linked below is listed as a water tank radiator for the engine cooling circuit. It should not be used as evidence that the same part is a hydraulic oil cooler.
A hydraulic oil cooler must suit the oil circuit and its operating requirements. A coolant radiator must match the engine cooling arrangement. Check for any integrated or separate heat exchangers rather than relying on a broad term such as “hydraulic radiator.”
Use the actual product specification
The KuduParts 140-3634 radiator listing gives a core size of 1000 × 640 × 115 mm. These are core dimensions, not a complete description of overall size, supports or connection positions.
- Confirm the machine model, serial range and existing reference.
- Compare the mounts, supports, hose locations and overall envelope.
- Check the supplied assembly and any separate fittings or service items.
Keep cooling performance claims proportionate
A replacement should restore the specified arrangement, not be assumed to prevent all overheating or improve every operating condition. Airflow, coolant condition, fan operation and other system faults also matter.
For a hydraulic application, compare the appropriate oil cooler listing instead. Ask for clarification if the listing, drawing and existing component do not describe the same circuit.
A function comparison before a dimensional comparison
| Question | Engine coolant radiator | Hydraulic oil cooler |
|---|---|---|
| Which fluid circuit is being described? | The engine-coolant arrangement. | The identified hydraulic-oil arrangement. |
| What does the replacement have to match? | The radiator's documented connections, mounts and supplied assembly. | The cooler's documented oil-side requirements, connections and installation. |
| What can a photograph establish? | Visible arrangement for comparison, not every internal or operating specification. | Visible arrangement for comparison, not fluid compatibility or a pressure rating. |

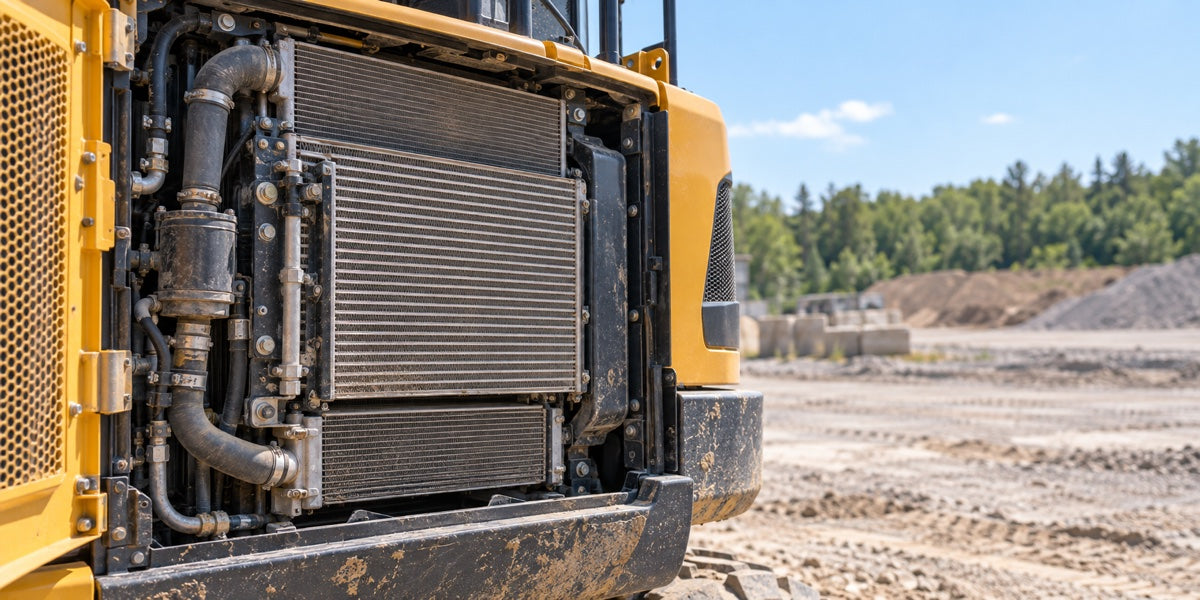

A combined cooling pack can place different circuits close together. Proximity does not merge their functions or make their cores interchangeable. If the catalog wording conflicts with the existing assembly, identify the circuit from the machine information before choosing a replacement.
For the product-specific measurements use the 140-3634 radiator example; for hydraulic-cooler requirements use the hydraulic oil-cooler guide. The comparison here prevents a category error before either selection begins.
